Project Information

Since 2018, Compere Systems has designed, constructed, and evaluated 16 filter press control panels for its esteemed client, JLJ Group. The most recent filter press has recently been installed at Lentex, a company based in Poland, where JLJ Group will complete its commissioning process. Compere Systems offers remote support through the use of Netbiter technology to provide assistance to JLJ Group as needed.

jlj-group-5b9a228de8100-1-500x300
download
01

Client

JLJ Group ltd.

03

Date

July 21, 2022

02

Our Role

Design, Build and Commision.

04

Category

Full Cycle.

Panel Building & Electrical Design

400mm wide and 500mm high mild steel panel with a painted RAL 7035 finish. The panel includes an incoming isolator, pH meter, and a 3-phase motor circuit for the main mixer. Additionally, a DC power supply unit provides 24VDC control voltage. To accommodate the solenoids for the pneumatic valves, we have also introduced a separate Pneumatic Control Panel.

Software

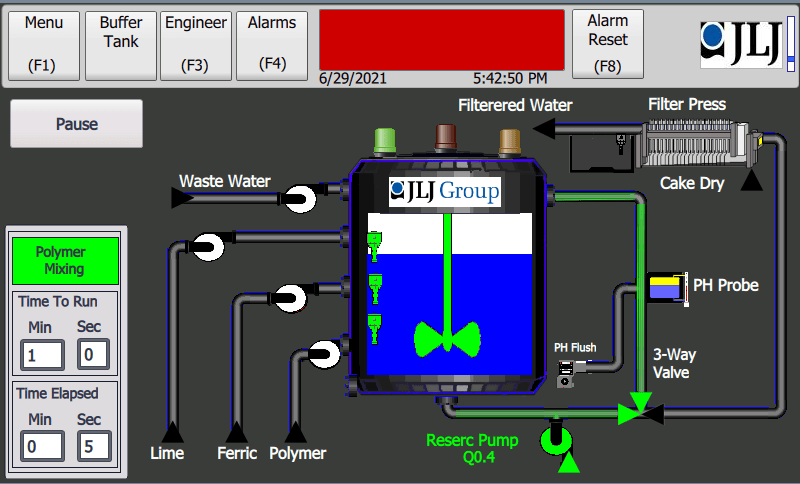

A Siemens CPU 1212C with Tia Portal 14 and a KTP 700 Basic 7 inch colour HMI touch screen. After 16 Filter presses the Lentex program has been thoroughly tested and modified throughout its generations.

Commissioning

JLJ Group Ltd commissioned the filter press at their facilities in Golborne. Upon the filter press arriving in Poland Compere Systems engineers provide remote access support via a netbiter.

JLJ Group ltd Transporting the Filter press to Poland.

lentexfilterpress
